ThinTrack™
ThinTrack™ is an ultra-low profile, compact solution that integrates LTE-M, NB-IoT, modem, antenna, battery, eSim and all necessary electronics into a device that measures just 82x35x3 mm and weighs only 15g.
A secure NFC smartphone app is used to activate the tracker and to read the individual item’s unique identifier.
Ultra-thin and compact asset tracker solution based on 4G/5G and GPS communication with cloud computing.
Activable with NFC secured app, accelerometer sensor for stand-by detection.
Super Thin design for logistics
- Compact (82x35mm) &
- Ultra-thin design (3mm)
- Multi-year battery life
- Waterproof IP54
- Reusable & activable
- Low cost
Fully integrated and multi-usage
- Cellular based LTE-M communication
- Powered by Nestwave assisted low power GPS technology
- Integrated antennas
- Activated with NFC secured smartphone App
Asset tracking & luxury solution:
- Discretion
- Prevent steal
- Easy to use
- Multi-application
- Reusable
SENSORIIS® : Multi-protocol Wireless Sensor
SENSORIIS® is an all-in-one smart building IoT device that is designed to monitor and report on building conditions such as intrusion detection, light, noise, and air quality. It provides reporting and management through a secure link. The device collects environmental data and transfers it to the Cloud through selected IOT networks for building a strong-eco-system for smart building and energy-saving market.

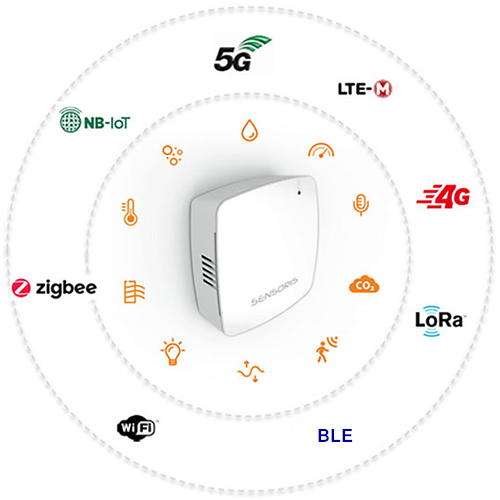

Multi-protocol Wireless connectivity
SENSORIIS® can connect all applications in for Smart Building, Smart Home, Smart City, to most of available networks 4G/5G LTE-M or NB-IoT (17-bands coverage), LoRa in all countries, Sigfox and control the devices for home and building automation along Zigbee communication and includes a Bluetooth LE link to enable set-up using smartphone .
SENSORIIS runs ultra-low power, targeting up to 3 years battery lifetime with reporting every 10mn up to 2h.
All-in-one environmental sensor
SENSORIIS® is an all-in-one environmental sensor, monitoring Temperature, pressure, humidity, ambiant light, sound, ambiant color light, volatil organic composit, air quality, CO2, particle PM1 and PM10, occupancy and vibrations. It integrates a remote control of actuators (heaters, lights, openings), for the optimization of energy and air quality monitoring in buildings.
Smart Buildings, Smart city, Smart Home applications
Targeting #smartbuilding commercial buildings #smartbuil- ding but also public places #smartcity, as well as the home #smarthome, it ensures their comfort, wellness, safety as well as health con dence and prevents intrusions or disasters.
Sense and Pilot
SENSORIIS® offers the « Sense and Pilot » solution providing multiple environmental sensor informations to a cloud server for data analysis and intelligent decision, and bridge the pilot and controle of local actuators (HVAC, Heating, windows, lights..)
Easy to install
SENSORIIS® is a stand-alone solution, which can be easily installed and configured on the wall, requiring neither electrical connection, nor network connection other than those preconfigured.
Smart WiFi Indoor Booster
Dual band 2.4GHz & 5GHz WiFi bi-directionnal 26dBm amplifier
SAM24G58N20I is a dual band 2.4GHz and 5GHz bi-directional amplifier compliant with IEEE 802.11b/g/a/n/ac WIFI standard.
The booster is fully operational for TDD applications thanks to a carrier sensing which switches automatically from receive to transmit modes. It provides a regulated constant 400mW (26dBm) linear output power in transmit mode, and a low noise amplification in receive mode. The booster allows increasing communication distance, speed and is provided with an omni-directionnal antenna.
Features
- RF frequency 2.4GHz and 5GHz
- WiFi IEEE802.11b/g/a/n/ac
- 26dBm TX output power
- Integrated filter for co-existence
- Size73x52x32mm
Applications
- Indoor Repeaters
- Access Points/Routers
- IP cameras / Video surveillance
- Agriculture
Smart WiFi Outdoor Booster
Dual band 2.4GHz & 5GHz WiFi bi-directionnal 23dBm amplifier
SAM24G58N20E is a dual band 2.4GHz and 5GHz bi-directional amplifier compliant with IEEE 802.11b/g/a/n/ac WIFI standard with a waterproof IP67 enclosure perfect for outdoor application
The booster is fully operational for TDD applications thanks to a carrier sensing which switches automatically from receive to transmit modes. It provides a regulated constant 400mW (26dBm) linear output power in transmit mode, and a low noise amplification in receive mode. The booster allows increasing communication distance, speed and is provided with a waterproof omni-directional efficient antenna.
Features
- RF frequency 2.4GHz and 5GHz
- WiFi IEEE802.11b/g/a/n/ac
- 26dBm TX output power
- Integrated filter for co-existence
- IP67
Applications
- Access Points/Routers
- IP cameras / Video surveillance
- Agriculture
- Drones
SAM2CALL
SAM2CAL board enables to optimize the performances RF and IoT design for antenna matching and RF measurement. With 7 mostly used RF on-board connectors and switch, SAM2CAL leverages the calibration of Network analyser or Spectrum analyser measurements.
SAM2CAL integrates Through /Open / Short / Load for the following connectors:
- SMA
- MMCX
- MHF1 / U.FL / AMC
- MHF4 / K.FL2 / AMC4
- MM8130
- MM8030
- MS-180 / MHF-SW18
